Producer:TOPMODEL CZ
Název zboží:Gracia (uncovered kit - ready to cover)

Category:TOPMODEL CZ AIRCRAFT MODELS > GLIDERS > Powered gliders > Powered gliders > 2,6m >

Price:305,00€ pc

Item No:02087ARC
Delivery status:in stock
Remark:news
Product information:Light thermic electric glider for competitions flying F5J. Wingspan 3,07 m.
Colour:

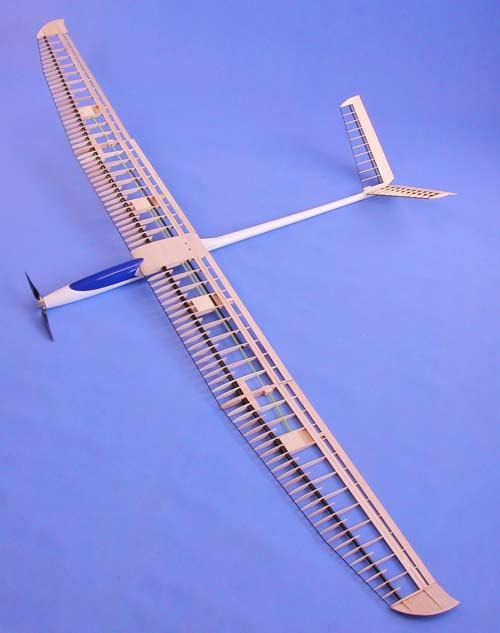

Product photo
more photos...

The wing spars and leading edge from carbon fibre gives the wing enough strength and stiffness.
Many expert pilots will be particularly surprised by its excellent flight qualities, given by the thin wing airfoil and weak weight.
Thanks to the long fuselage, the model has a calm and steady glide path.There are several possibilities how to mix the functions of the flaps (high performance thermal soaring, spot landing etc.).

With the recommended gear train set, the performances are fantastics as well as when climbing (power) as  soaring (lightness) and the flying time is counted in hours rather than in minutes!

The fuselage is carbon reinforced!!!

The model is designed and manufactured in Czech Republic.

Technical specification:


3070 mm


1510 mm


1,9-2,2 kg


70,4 dm2


27-31,25g/dm2


MH 32


A+FL+M+V-tail

Suggested Equipment:
motor:   MVVS 4,6/840 sport
controller: XREG 60
spinner:   0201559
propeller:  Aeronaut 12/8" - for 4S LiPo, 14/8" - for 3S LiPo
battery:    3- 4S LiPo 2,9 - 3,3Ah
servos: 6x HS 82MG

Kit contents:
  • Light fuselage (carbon reinforced) moulded in white tinted epoxy fiberglass
  • Three-piece wing is made in balsa framework with wing joiner, leading edges and wing spar made of carbon
  • Tailplane are made in a balsa framework with carbon spar and leading edges
  • Top quality accessories
  • Complete assembly manual with step by step illustrations

Equipments required

SPIN 66 PRO JETI1RC23205
Název zboží: SPIN 66 PRO JETI
Price: 107,60€ vložit zboží do košíku
Brushless microprocessor air / heli speed controller 66 A with powerful switching BEC. Power Nixx 6-18 cells, Li-xx 2-6 cells, using a programmable unit JETIBOX.
Mega ACn 22/30/3E20223003E
Název zboží: Mega ACn 22/30/3E
Price: 102,00€ vložit zboží do košíku
Brushless motor MEGA RPM 935/1V
Transport bags for Gracia02087-PO
Název zboží: Transport bags for Gracia
Price: 56,00€ vložit zboží do košíku
Bags for wings and V-tail.
Accu LiPol Xpower 2800-3S EX (55/30C)1286
Název zboží: Accu LiPol Xpower 2800-3S EX (55/30C)
Price: 37,20€ vložit zboží do košíku
2800-3S EX (11,1V) 135x44x19 mm 245 g Max. current load: 55C burst, 30C continuous. Charging current up to 5C. Balance connector type JST-XH.
HS-82 MG Bulk 1pcs.1HI3042-1x
Název zboží: HS-82 MG Bulk 1pcs.
Price: 19,10€ vložit zboží do košíku (recommended quantity: 6 pieces)
Unpacked fast microservo 19g with metal gears for small electric planes and sailplanes. Torque 2,6 kg/cm, speed 0,11s/60st in 4,8 V
Notice: For Ailerons, flaps and V-tail
Alu precision spinners turbo 40/5,0/80201559
Název zboží: Alu precision spinners turbo 40/5,0/8
Price: 16,90€ vložit zboží do košíku
Spinner ø 40/5 mm, for blade root width 8 mm.
CAM CARBON 14/8", 35,5x20cm723468
Název zboží: CAM CARBON 14/8", 35,5x20cm
Price: 10,60€ vložit zboží do košíku
Folding propeller blades, blade root width 8 mm.
Charging cable with DC3A1934
Název zboží: Charging cable with DC3A
Price: 3,77€ vložit zboží do košíku
Nabíjecí kabel pro pohonné sady Dualsky opatřené modrým konektorem DC-3B (dutinka)
Gracia stickers02087-7
Název zboží: Gracia stickers
Price: 2,80€ vložit zboží do košíku
Stickers sawed with using a plotter on transfer film for Gracia 3,07m wingspan.
MPX 6 green connector 1 pair1M605001P
Název zboží: MPX 6 green connector 1 pair
Price: 2,00€ vložit zboží do košíku (recommended quantity: 2 pieces)
Up to 6 - 8A
MPX 6 connector holderNes001
Název zboží: MPX 6 connector holder
Price: 1,99€ vložit zboží do košíku (recommended quantity: 2 pieces)
For MPX 6 connectors 1 pair + 4x Screw
Clip fixing mini03801
Název zboží: Clip fixing mini
Price: 1,90€ vložit zboží do košíku
for wing fixing, plastic, 2 pairs
Connector CAN 15182040 CAN15
Název zboží: Connector CAN 15
Price: 1,80€ vložit zboží do košíku
Three-Row connector, 15 PIN
Velcro fastener width 5cm; length 25cm0167823-0,25
Název zboží: Velcro fastener width 5cm; length 25cm
Price: 1,50€ vložit zboží do košíku
Self-adhesive Velcro, both parts. Price per 25cm.
Notice: for fixing the battery
Thermo-Shrinkable insulation Ø1,6mm (1m)9001
Název zboží: Thermo-Shrinkable insulation Ø1,6mm (1m)
Price: 1,25€ vložit zboží do košíku
For isolation of soldered joints of thin cables Ø1,6mm Price per 1 m.
Notice: ~0,6m
Connector Dualsky DC3-A male1300
Název zboží: Connector Dualsky DC3-A male
Price: 1,15€ vložit zboží do košíku
The batteries Xpower EX have already these connectors on their cable
Servo Cable Twisted Thick JR 0.25mm28GR3009
Název zboží: Servo Cable Twisted Thick JR 0.25mm2
Price: 0,80€ vložit zboží do košíku
Twisted Servocable (three-row) 0,25mm². Price per common meter. 1 m Weight 13 grams.
Notice: ~2,3

Spare parts

02087-2ARF
Název zboží: Gracia 3,07 m ARF Wings
Price: 278,00€ vložit zboží do košíku
Part of the wing is small accessories for installation of servos. Covered Oracover®
02087-2ARC
Název zboží: Gracia 3,07m Wings (uncovered - ready to cover)
Price: 213,00€ vložit zboží do košíku
Part of the wing is small accessories for installation of servos. Not covered.
Fuselage Gracia02087-1
Název zboží: Fuselage Gracia
Price: 65,00€ vložit zboží do košíku
fiberglass, carbon reinforced, length 1440 mm.
Gracia V Vee tailplane ARF02087-3ARF
Název zboží: Gracia V Vee tailplane ARF
Price: 26,90€ vložit zboží do košíku
Package contains: complete V; 2 x fiberglass lever 050701; 2 x fiberglass elevator joiner Ø 5 x 70mm; 2 x fiberglass centering pin Ø 3 x 16mm; set of adhesive tapes Color (transparent)
Gracia V Vee tailplane (uncovered - ready to cover)02087-3ARC
Název zboží: Gracia V Vee tailplane (uncovered - ready to cover)
Price: 22,90€ vložit zboží do košíku
Package contains: complete V; 2 x fiberglass lever 050701; 2 x fiberglass elevator joiner Ø 5 x 70mm; 2 x fiberglass centering pin Ø 3 x 16mm; set of adhesive tapes
Canopy Gracia02087-6
Název zboží: Canopy Gracia
Price: 10,50€ vložit zboží do košíku
Fiberglass gelcoated
Set of adhesive tapes for ailerons and flaps 5 mTAPE12
Název zboží: Set of adhesive tapes for ailerons and flaps 5 m
Price: 2,60€ vložit zboží do košíku
Set of adhesive tapes for ailerons and flaps. Length 5 m.
Wing servo mounts 13 mm05028
Název zboží: Wing servo mounts 13 mm
Price: 2,40€ vložit zboží do košíku
Polyurethan 13 mm, delivered in double pairs.
Electric engine mount  Mega ø 39mm02075-1C
Název zboží: Electric engine mount Mega ø 39mm
Price: 1,60€ vložit zboží do košíku
CNC cut fiberglass Ø39 x 3 mm, for Mega ACn 22/xx/xx
Electric engine mount Universal ø 39mm02072-1C
Název zboží: Electric engine mount Universal ø 39mm
Price: 1,60€ vložit zboží do košíku
CNC cut fiberglass Ø39 x 3 mm
Plastic servo covers05018
Název zboží: Plastic servo covers
Price: 1,60€ vložit zboží do košíku
For mini servo, ø 65 mm.
sets Pushrod (2x  Bowden tubeØ 3/2mm + 2x  Steel wire Ø 1,5mm)SET3215
Název zboží: sets Pushrod (2x Bowden tubeØ 3/2mm + 2x Steel wire Ø 1,5mm)
Price: 1,30€ vložit zboží do košíku
Length 1 m.
Servo tray of the V-tail UNI 1020STV1-2
Název zboží: Servo tray of the V-tail UNI 1
Price: 0,99€ vložit zboží do košíku
plywood 4 x 53 x 47mm
Fiberglass control horn Linea050701
Název zboží: Fiberglass control horn Linea
Price: 0,72€ vložit zboží do košíku
Dimensions: 21 x 1,5 x 11 mm
Notice: for V-tail
Fiberglass control horn Linea050702
Název zboží: Fiberglass control horn Linea
Price: 0,70€ vložit zboží do košíku
Dimensions: 14 x 1,5 x 12 mm
Notice: for flaps
Universal wing joir Ø8 L 130mm fiberglass 1Pcs.FI8130
Název zboží: Universal wing joir Ø8 L 130mm fiberglass 1Pcs.
Price: 0,70€ vložit zboží do košíku
Fiberglass control horn Linea05070
Název zboží: Fiberglass control horn Linea
Price: 0,60€ vložit zboží do košíku
Dimensions: 21 x 1,5 x 10 mm.
Notice: for ailerons
