Product description and features

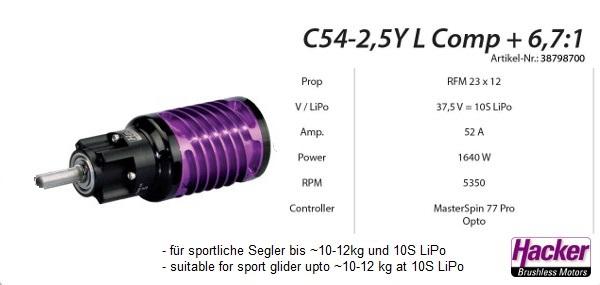

Compact 4 pole inrunner motor with 6.7:1 reducting gear and 6 millimeter shaft e. g. suitable in combination with the the FesEx-Uni8 system.
Drive recommendation
This setup is recommended for sport gliders with approx. 10 to 12 kilograms take-off weight and 10S LiPo drive battery.
Delivery contents
Inrunner with reducting gear, GRP spacer ring, special drive grease and mounting and operating manual.
| Specifiactions | |
| Poles | 4 |
| Turns | 2,5 Y |
| Idle current (I0) at 37V [A] | 1,9 |
| Internal resistance (Ri) [Ohm] | 0,021 |
| Gear reducing | 6,7:1 |
| Output shaft | 6 |
| Recommended timing [°] | 5-10 |
| Switching Frequenzy [kHz] | 8 |
| Controller recommendation [A] (depending on setup) | 70 - 125 |
| Leerlaufdrehzahl pro Volt (kv) ohne Getriebe | 1115 |

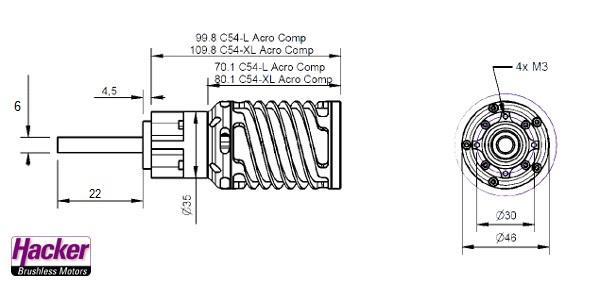

| Dimensions and weight | |
| Weight [g] | 445 |
| Length [mm]/[in] | 99,8 |
| Outer diameter [mm]/[in] | 46 |
| Shaft diameter [mm]/[in] | 6 |
| Delivery contents | |
| Prop Adapter | Nein |
| Mounting cross | Nein |
| Gold plug mm (soldered) | 4 |
| Backmount mountable | Nein |
| Front mountable | Ja |
