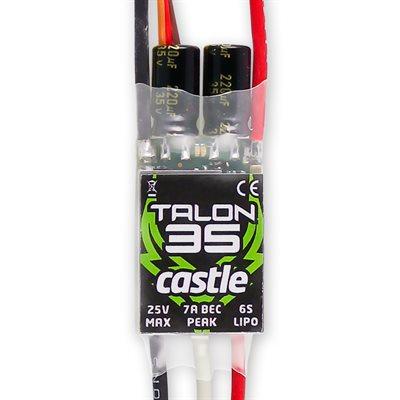

Talon 35 small packs, large BEC.
This "little tough guy" can handle almost all extreme maneuvers with "calmly". Talon 35 is intended for use in the 450 class helicopter power up to 6S, an aircraft grade .10 -.20. subscription to 35A. The BEC circuit is switched. Provides continuous current 5A and 7A peak. It can handle almost all the power "hungry" servo. Talon 35 also includes all facilities for helicopters, in which the company is the world leader in Castle. Compact and slim design allows for easy installation into each model and each use.
As is customary Castle of products is available for free professional software for operating the control and programming by USB conector Castle Link.
Specifications controller TALON 35
Application: Caliber 450, aircraft engines with .10 - .20
Power supply: MIN: 2S, MAX: 6S LiPo
Max. current continuously at full throttle: 35A *
The output voltage of BEC: 5.5V
The output current of BEC: 5A continuous, 7A peak **
Dimensions: Width: 22.4 mm
length: 49 mm
Height: 8.4 mm
Weight (without cable): 12 g
Weight (with cables): 27.8 g
Connectors ESC-motor and ESC accu-not included.
* USE RC MODEL: 35A at current and power from one set of 4000 mAh and cooling reg. Stream of air at a speed of 8 km / h at an air temperature of 25 ° C. The temperature controller must not exceed 100 ° C. The crossing may result in damage or destroy the controller. Always try load at full throttle. To reduce the temperature controller reduce the load (small propeller) or have better air cooling.
** For 0.5, which meets the current needs of most servos present. Each servo has a different collection and each model is different, so always before the flight, make sure that the current from the BEC will suffice.
Power supply: MIN: 2S, MAX: 6S LiPo
Max. current continuously at full throttle: 35A *
The output voltage of BEC: 5.5V
The output current of BEC: 5A continuous, 7A peak **
Dimensions: Width: 22.4 mm
length: 49 mm
Height: 8.4 mm
Weight (without cable): 12 g
Weight (with cables): 27.8 g
Connectors ESC-motor and ESC accu-not included.
* USE RC MODEL: 35A at current and power from one set of 4000 mAh and cooling reg. Stream of air at a speed of 8 km / h at an air temperature of 25 ° C. The temperature controller must not exceed 100 ° C. The crossing may result in damage or destroy the controller. Always try load at full throttle. To reduce the temperature controller reduce the load (small propeller) or have better air cooling.
** For 0.5, which meets the current needs of most servos present. Each servo has a different collection and each model is different, so always before the flight, make sure that the current from the BEC will suffice.
