Receiver DUPLEX R7 nano EX combines many servo outputs together with small dimensions. R7 nano EX is designed for easy use in small models. The receiver incorporates a single 32mm antenna.

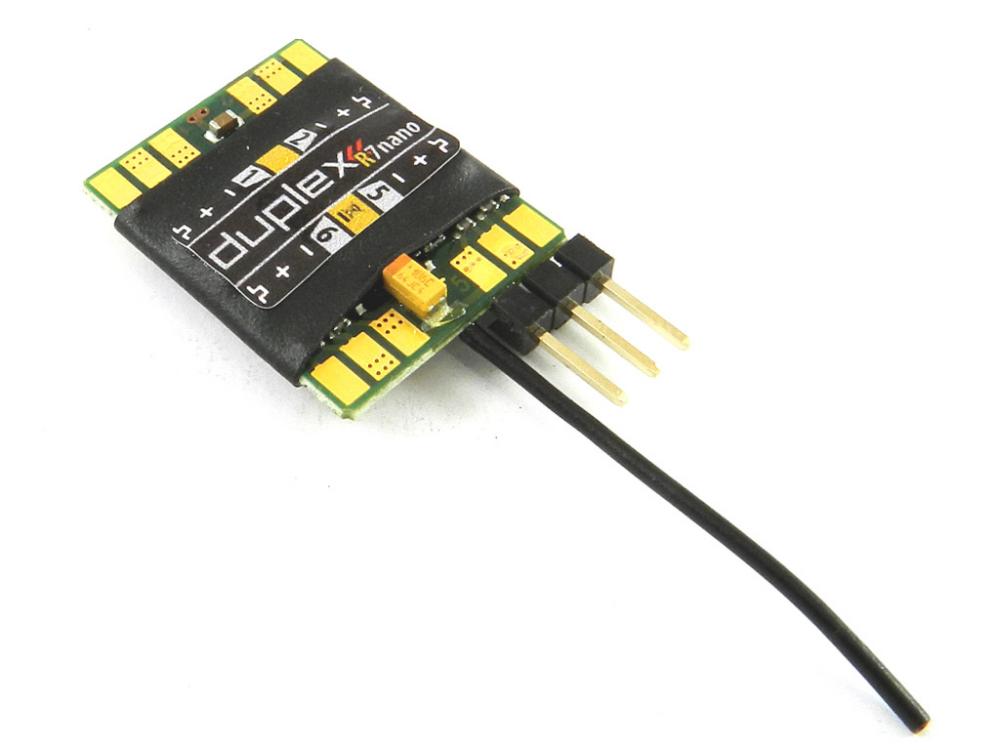

Product photo
Receiver DUPLEX R7 nano EX combines many servo outputs together with small dimensions. R7 nano EX is designed for easy use in small models. The receiver incorporates a single 32mm antenna.
R7 nano is the lightest receiver of the Duplex system, its weight is only 1 gram (2g in shrink tube).
Weight [g]
1 (2)
Dimensions [mm]
30 x 18 x 5
Number of channels
7
Telemetry
Yes
Operational temperature [°C]
-10 to 85
Compatible protocols
DUPLEX 2.4 GHz EX, EX Bus
Antenna Length [mm]
1x 32
Supply Voltage [V]
3.5 - 8.4
Average Current [mA]
30
Satellite receiver support
No
Output Power [dBm]
6
Receiver Sensitivity [dBm]
-98
Assist stabilization
No
Frequency
2.4GHZ
