Product information

Product information
Producer:Model Motors
Název zboží:AXI 2203/RACE V2 střídavý motor

Category:ELECTRIC MOTORS > Brushless > Air > AXI > V2 >

Price:63,86€ pc

Item No:3EL105520V2
EAN:8595247302526
Delivery status:in stock at supplier
Product information:Ø27,7x21mm, RPM 2300/1V, weight 19g. Brushless motor with rotating case for a new generation of models acro to 170 grams, power Lixx 2s, 3.17 mm shaft, 10-12 regulator.

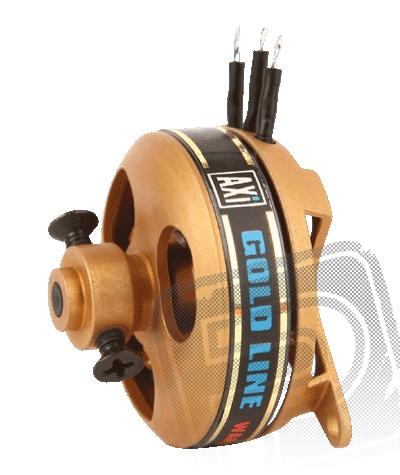

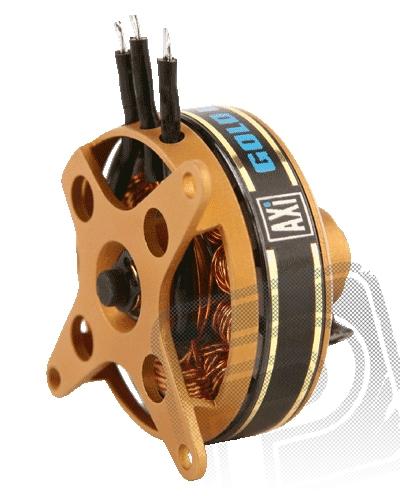

Product photo
more photos...

Technical specification

RPM/V 2300 RMP/V
Max. efficiency 75%
Max. efficiency current 3 - 7,5 a (>69%)
No load current 0,55 A
Current capacity 10A/20s
Internal Resistance 220 mohm
Dimensions (∅ x L) 27,7x21 mm
Shaft diameter 3,17 mm
Weight 19 g
No. of cells 2 Li-Poly
Max. Power 62 W

New very light and powerful motor AXI 2203/RACE GOLD LINE V2 with hollow shaft, these motors have three-point mounting lugs and reach just 19g in weight. These motors was tuned by Gernot Bruckmann especially for area of fast indoor aerobatic models. Three-point mounting lugs allows easy mounting to the fuselage of model and fast centering of motor. 3,17mm best quality hollow shaft is supported by two ball bearings. This motor is suitable particularly for light AIR RACE and fast aerobatic indoor models up to 170g in weight.

Best Practices


170 6,0 2s 9A/20s 8A mini 7"x3,5"
