Producer:MAV Sense
Name:MAV Sense hall position sensor

Category:CONTROLLERS > Accessories >

Price:14,02€ pc

Item No:MAV0025
EAN:8596450053717
Delivery status:contact us
Product information:Magnetic (Hall) propeller position sensor for MAV Sense IBEX line ESCs enabling to stop the motor and propeller at an exact position defined by the magnetic sensor location. Dimensions 12x8x3mm (sensor), Ø 3x2mm (magnet).
Product photo
more photos...

Magnetic (Hall) propeller position sensor for MAV Sense IBEX line ESCs enabling to stop the motor and propeller at an exact position (defined by the magnetic sensor location on the model and the magnet on the propeller/spinner).

MAV Sense products are designed and manufactured in the Czech Republic

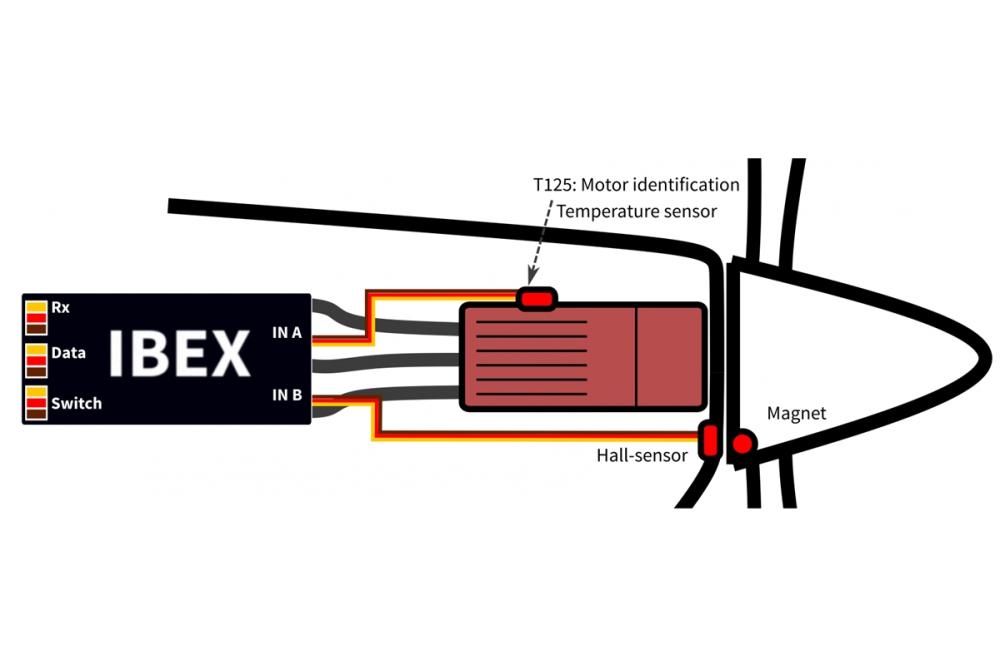

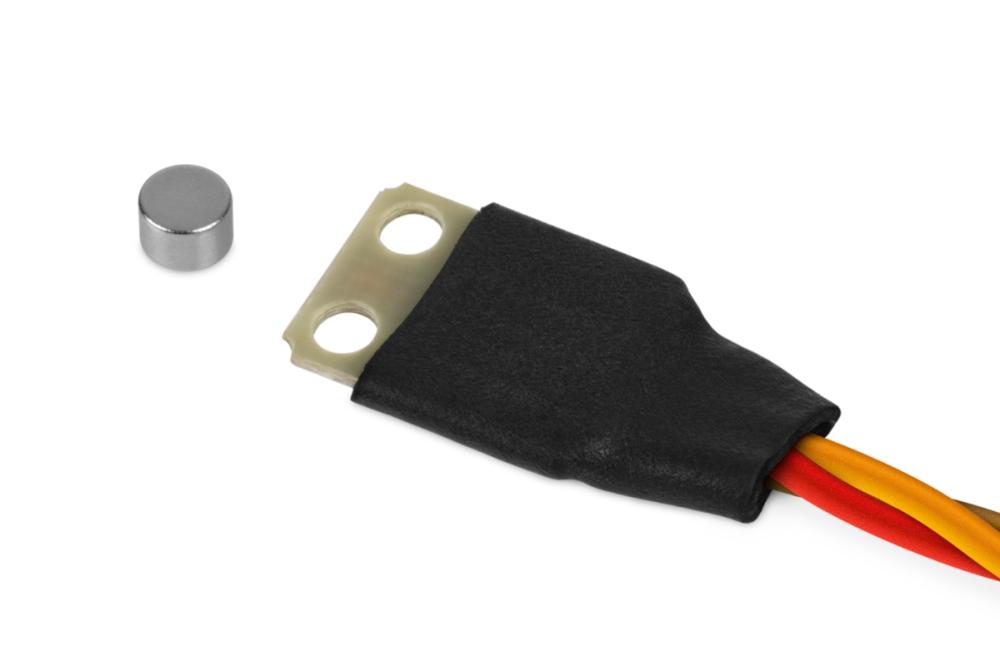

Contains a Hall sensor to be installed to the model and a small magnet to be installed to the spinner, prop driver or propeller; the gap between the sensor and magnet should not be bigger than 1 mm.

Dimensions 12x8x3 mm (sensor), Ø3x2 mm (magnet).

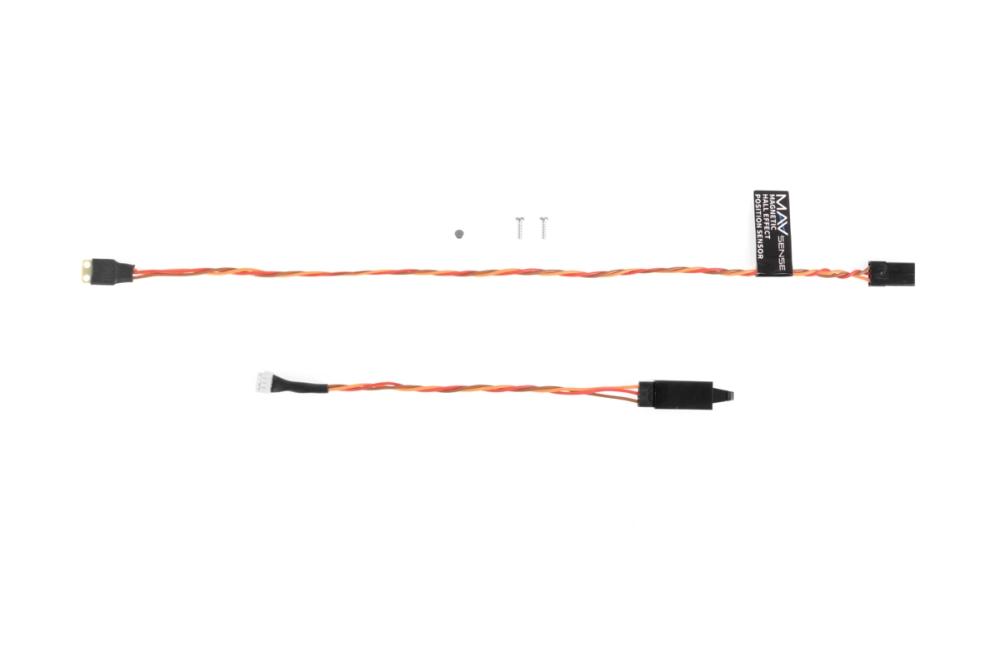

The set contents: Magnetic sensor w. cable, magnet, 2 screws, instruction manual.
