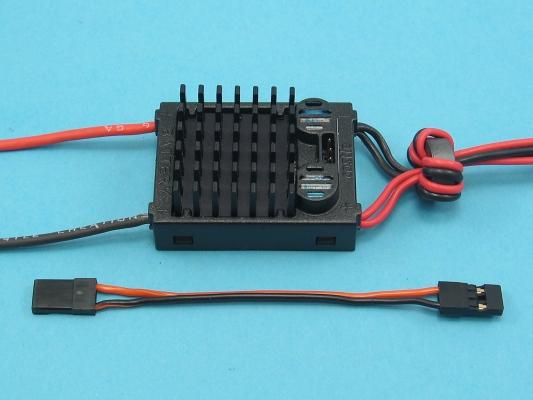

External switching voltage controller is of 29 grams weight (w/o cables), the dimensions are 43 x 33 x 24mm.
The peak current is up to 20Amps.
The input voltage can be in range, which corresponds to following number of LiPo cells:
For cars: up to 6S (25V)
For planes up to: 10S (40V)
For helis (brake disabled) up to: 12S (50V)
Similar, as all of the Castle products, the controller can be programmed with the Castle Link adapter.
The output voltage can be programmed in range 4,8V to 12,5V, step 0,1V
