Product information

Technical specification:

WINGSPAN (mm)	LENGTH (mm)	FLIGHT WEIGHT (kg)	WING AREA (dm2)	WING LOADING (g/dm2)	PROFIL	CONTROLLED FUNCTIONS
1999	1350	1,8-2,1	40,2	44,7-52,2	HQ	*MOTOR AILERONS ELEVATOR RUDDER

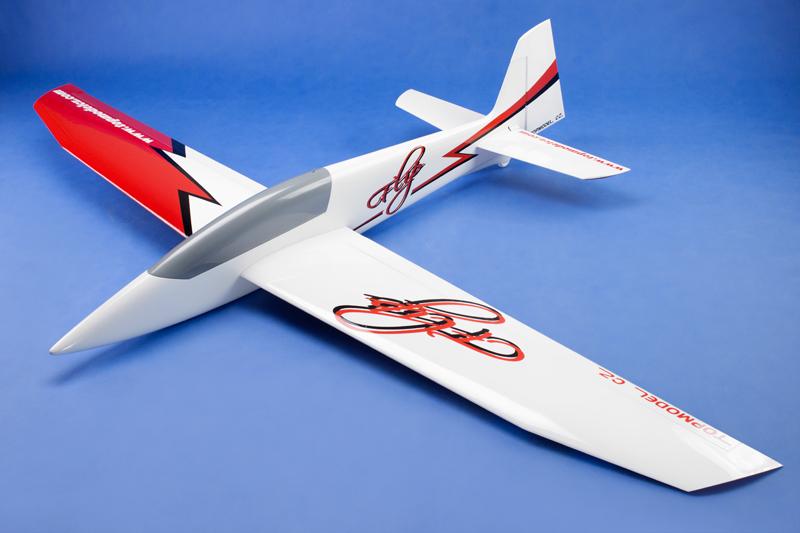

Aerobatic glider (electric glide) for sports and competitions flying.Flip is delivered as a glider. Parts for the electrification are supplied in the kit, including preparation for cutting the front of fuselage.

Flip is designed for sports and acrobatic flying on a slope or on a flat. You can fly on the flat as a glider or with the electrified version as well. Start is possible using towing, or aero tow (you must install towing hook).

Motorization is designed for a capacity 3S Li-Po 2 - 4Ah. Flip is a skillful glider which readily responds to control commands. Due to the large area of ​​the body side handles and maneuvers such as roll on time and knife years. Even when thermal flying gives a surprisingly good performance.

The wing structure is polystyrene-balsa, supplemented spar and fiberglass reinforcement. The hull is fiberglass, white-colored, complete with fiberglass cab.
Floating elevator is balsa construction with carbon spar and leading edge. The elevator is easily removable.
Also the rudder is balsa construction.

The model is designed and manufactured in Czech Republic. Spare parts are in stock.
If you are interested in a different color combination than we offer, please contact us.

The kit contains:

• Fiberglass fuselage in glider version with carbon reinforcement and fiberglass canopy
• Two-piece foam–balsa wing, covered with iron-on film
• Elevator is made in a balsa framework with carbon spar and leading edges, covered with iron-on film
• rudder is made in a balsa framework, covered with iron-on film
• cutting template for the nose of fuselage
• Top quality accessories (servo covers, servo mount, rods, ending ties, control horns, carbon wing joiner, tape for sticking flaps, fiberglass motor mount,...)
• Stickers cut with a plotter with transfer foil
• Complete assembly manual with step by step illustrations


Recommended  equipment :

Servos:          2x aileron (HS 82MG Hitec)
                      1x elevator ( HS-485 HB Hitec)
                      1x rudder ( HS-485 HB Hitec)
Motor:             Mega 22/30/3E
Controller:      KAVAN R-80SB Plus
Spinner:         Ø 40/5/8 (TOPMODEL CZ 0201559)
Prop:              14/8" KAVAN Carbon)
Accu:              3S LiPol, 2000-4000mAh
