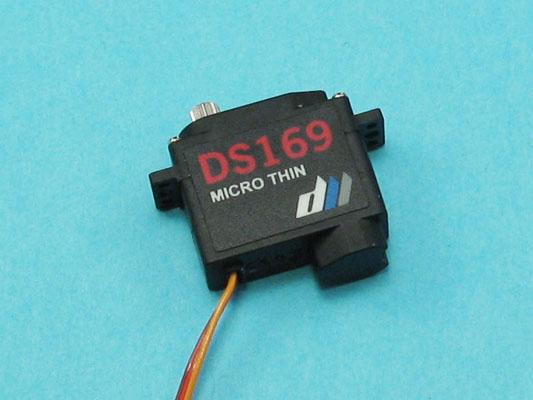

Dualsky DS 169 - 8,5mm, 9g, 2,8Kgcm
Horizontal flanges.
Horizontal flanges.
The DS 169 light low/med/high voltage thin servo. It is especially good for requrements of small models.
The DS 169 can be operated from a voltage as low as 3,8V (1S LiPo) or as high as 8,4V (2S LiPo). Dualsky improved its geartrain machining tolerances, and this servo is completely slop free, and equal to products costing twice as much.
The Dualsky DS 169 high torque, good speed, 8,5 mm thinness and reasonable price make it suitable for many glider. With up to 2,8kgcm torque the servo is appropriate for F3L (RES) and many types of other high performance models.
DS 169 Specifications | ||
Body dimensions | 23,5 x 8,5 x 24 mm | |
Torque | ||
Torque (6V) | 2,3 kgcm | |
Torque (7,4V) | 2,80 kgcm | |
Weight | 9 g | |
Operating speed | ||
Operating speed (6V) | 0.08 sec/60° | |
Operating speed (7,4V) | 0.06sec/60° | |
Operating voltage | 3,8V to 8,4V | |
Bearings | 2 ball bearing | |
Gear material | Aluminium alloy / copper-bronze alloy | |
Case material | Plastic | |
Motor type | Coreless DC motor | |
Working frequency | 333 Hz | |
Digital | Yes | |
Programmable | No |
