Product information
Product description and features
The A30-LN series has been specially developed for glider models with narrow fuselages. Since the fuselage becomes significantly thicker a few centimeters after the motor frame, a compact high-torque outrunner can be used in direct drive. Due to the high efficiency and the built-in fan, the motor remains cool for a long time even in narrow, poorly ventilated hulls.
This weight-optimized high-end engine with a weight of only 190g is often used in glider models up to 3.2 kg. Of course, the A30-12 XL-LN V4 kv700 also fits perfectly in motor and sports aircraft up to approx. 1.8Kg take-off weight when it gets tight under the cowling.
Accessories
The suitable controllers, batteries and a suitable propeller can be found in the Accessories tab.
Scope of delivery
1x A30-12 XL-LN V4 kv700 and manual.
Drive recommendation
A30-12 XL-LN V4 kv700 |
Artikel-Nr.: 10109256 |
Propeller |
Xoar 14x7 |
ACC 12x10 |
LiPo |
4S |
4S |
Voltage [V] |
14,8 |
14,8 |
Current [A] |
65 |
58 |
Power [W] |
962 |
858 |
RPM |
8571 |
8864 |
Controller [A] |
70-80 |
70-80 |
Timing [°] |
20-25 |
20-25 |
Specifiactions |
max. power range [W] (max.15 sec.) |
650 |
Poles |
14 |
Turns |
12 |
Idle current (I0) at 8.4V [A] |
1,5 |
Internal resistance (Ri) [Ohm] |
0,034 |
Recommended timing [°] |
20 - 25 |
Switching Frequenzy [kHz] |
8 |
Controller recommendation [A] (depending on setup) |
70 |
Idle speed per volt (kv) |
700 |

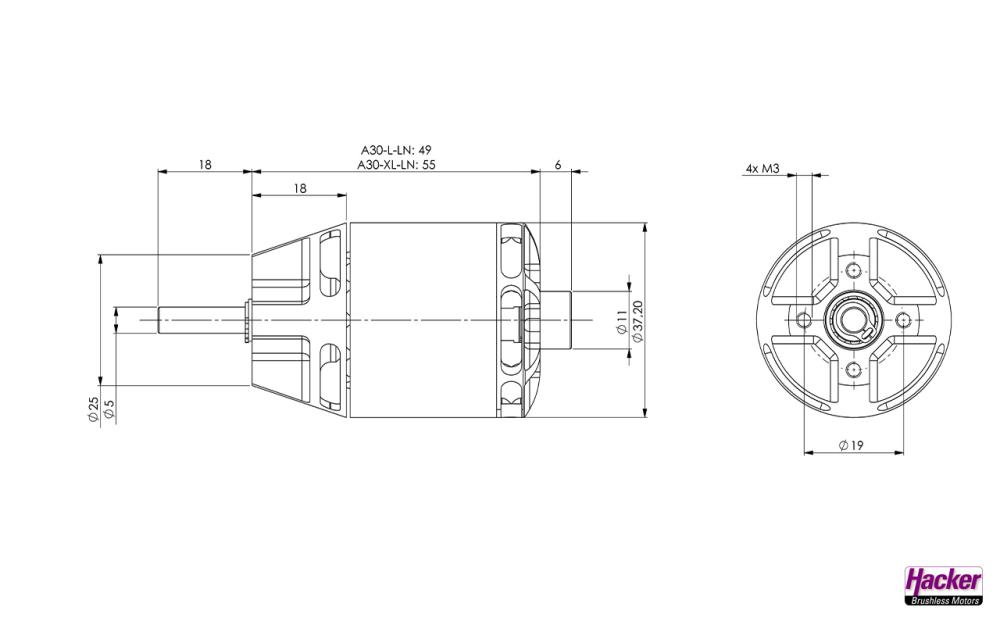

Dimensions and weight |
Weight [g] |
190 |
Length [mm]/[in] |
55 |
Outer diameter [mm]/[in] |
37,2 |
Shaft diameter [mm]/[in] |
5 |
Delivery contents |
Prop Adapter |
Nein |
Mounting cross |
Nein |
Gold plug mm (soldered) |
3,5 |
Backmount mountable |
Nein |
Front mountable |
Ja |
![](./resources/upload/eshop_481086.jpg)
|
