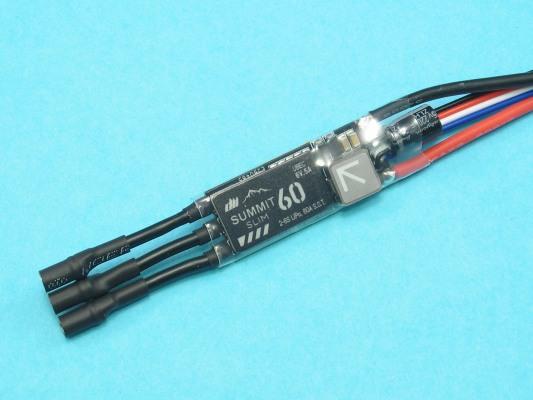

The SUMMIT 60 SLIM regulator is designed for power supply from a 2S-6S LiPo battery.
UBEC 6V, 5A. Max. the current is 60A.
UBEC 6V, 5A. Max. the current is 60A.
The SUMMIT 60 SLIM is for model airplanes, especially electric gliders, and is equipped with a powerful BEC.
The SUMMIT 60 in the SLIM version is supplied in a shrink tube and is therefore designed to take up as little space as possible.
All SUMMIT 60 controllers are ultra-small and, above all, narrow, which greatly facilitates their use in electric gliders.
This makes these regulators one of the smallest on the market!
Note: Programming only through the "BLHeli_32" application in the BLHeli Suite Configurator.
The SUMMIT 60 in the SLIM version is supplied in a shrink tube and is therefore designed to take up as little space as possible.
All SUMMIT 60 controllers are ultra-small and, above all, narrow, which greatly facilitates their use in electric gliders.
This makes these regulators one of the smallest on the market!
Note: Programming only through the "BLHeli_32" application in the BLHeli Suite Configurator.
Basic settings as delivered
Direction of rotation: normal
Engine Timing: Auto
Throttle lever min. 1040
Throttle lever max. 1960
Undervoltage shutdown: 3V
Brake setting: 80%, activated
PWM frequency: 24kHz
Weight: 34g including cables and connectors
Direction of rotation: normal
Engine Timing: Auto
Throttle lever min. 1040
Throttle lever max. 1960
Undervoltage shutdown: 3V
Brake setting: 80%, activated
PWM frequency: 24kHz
Weight: 34g including cables and connectors
Recommnded settings for E-gliders:
The default 80% brake is for aerobatics, for glider: please set the "brake on stop" to 100%, and "Non damped mode" to OFF
The detailed instructions for use are in English.
